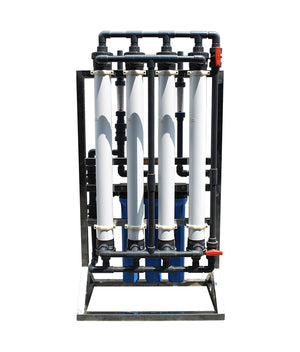

1000LPH UF Manual Control | Ultra Filtration System

Ultra Filtration System

Product Features

• Inlet pressure: below 3bar
• Backwashing pressure: 2bar
• Produce capacity: 1000L/H
• Operating type: full manual, no automatic

Product Parts

• Product water valve
• Backwashing inlet water valve
• Inlet valve
• Rinse drain water valve
• Backwashing drain water valve
• Produce water flow meter
• Wastewater flow meter

How to run the machine?

Before start operating the machine, there are 3 connection should be done :

•


  1. Connect the raw water, from the 3 stages blue filter housing, the size is 1’’;


  1. Connect product water tank or water use site from the pipe of the produced water flow meter, the size is 1’’;


  1. Connect the wastewater pipe from the pipe with a wastewater flow meter, for recycle, or drain out;


  Operating :


  • When the system working, open the valve: inlet valve/product water valve;


  • Close others 3 valves,


  • When the system process backwashing, open the valve: backwashing inlet valve, and the backwashing drain valve.


  • Backwashing frequency: 1 week 1 time ;


  • Time of backwashing: 1 time 20-30mins
