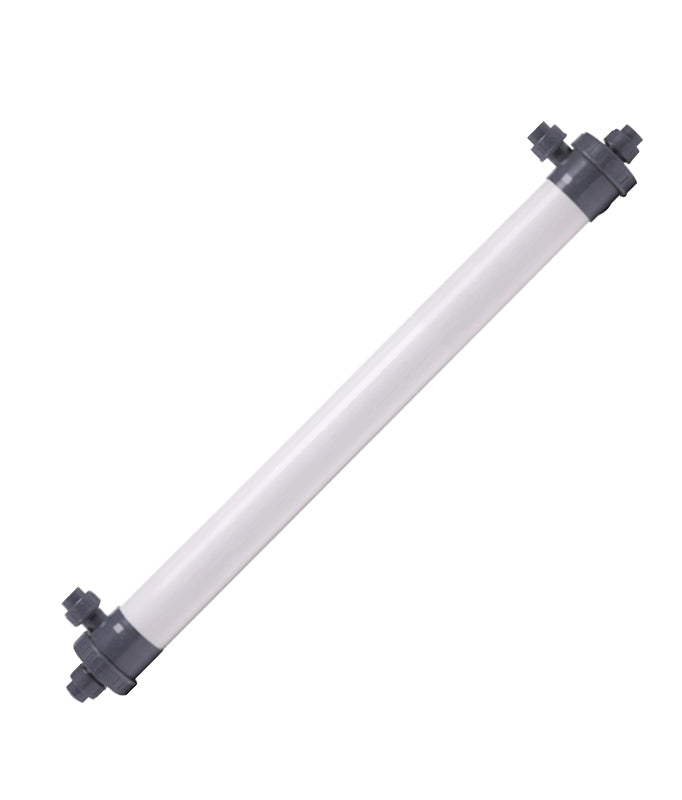

• UF Membrane AQU-90
1 1

UF Membrane AQU-90

UF Membrane AQU-90
R 3,036.00 ZAR
R 3,036.00 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

UF Membrane AQU-90

Ultrafiltration Components Parameters


Model No. AQU-90PAN AQU-90PS AQU-90PP AQU-90PVDF
Size L Φ90X1162mm
S Φ90X678mm		 L Φ90X1162mm
S Φ90X678mm		 L Φ90X1162mm
S Φ90X678mm		 L Φ90X1162mm
S Φ90X678mm
Hollow fiber material PAN PS PP PVDF
Hollow fiber ID/OD 1.0mm / 1.6mm 1.0mm / 1.6mm 0.4mm / 0.5mm 0.7mm / 1.3mm
MWCO (Daltons) 50k～100k 10k～100k 50k～100k 100k～200k
Membrane area L-4.5m2 S-2.3m2 L-4.5m2 S-2.3m2 L-8.9m2 S-4.4m2 L-7.0m2 S-3.4m2
Filtration method Inside-out Outside-in
Initial flux L/H, 0.1mpa, 25˚C pure water as feed >900 (L) >420 (S) >900 (L) >420 (S) >1100 (L) >530 (S) >1000 (L) >480 (S)
Designed water flux 40-120L/m2/h 40-80L/m2/h
End seal material Epoxy resins
Housing material UPVC
Connection/Pipe Union connection / PVC Pipe OD. 32mm
Max. Feed pressure 0.3mpa 0.3mpa 0.3mpa 0.25mpa
Max. trans-membrane pressure 0.2mpa 0.2mpa 0.2mpa 0.15mpa
Normal trans-membrane pressure 0.02-0.15mpa 0.02-0.15mpa 0.02-0.15mpa 0.01-0.1mpa
Feed turbidity <50ntu
Permeate turbidity <0.1ntu
Max. working temperature 5-45˚C
PH range 3-9 2-12 1-14 2-13
Microorganism, pathogen 99.99% Removal
