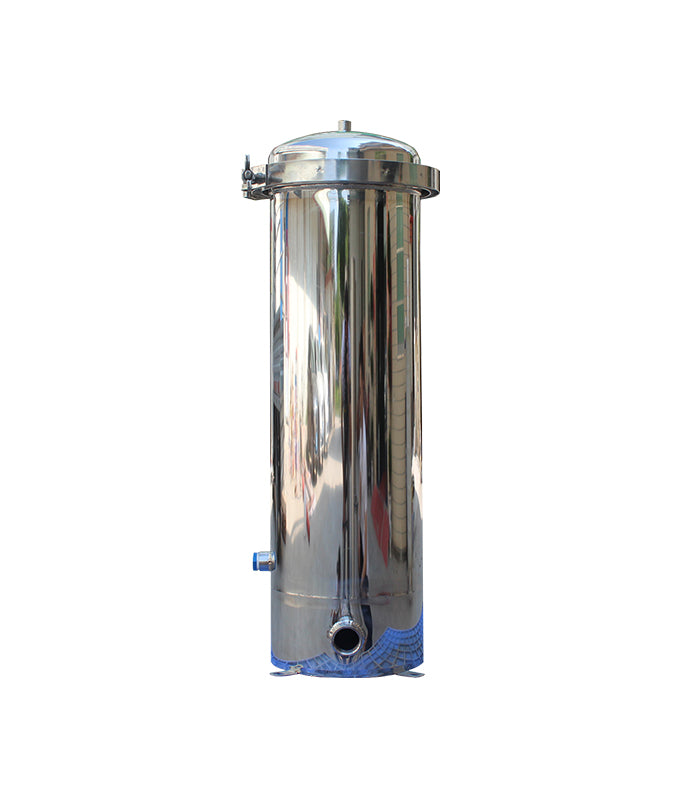

Multi-cartridge stainless steel liquid filter housings are a high-quality solution for high-volume filtering. Our multi-cartridge housings hold 5 to 22 filter cartridges in standard 30” and 40” lengths, for liquid filtration flow rates up to 616 GPM (140 m3/hr).

Commercial & industrial filter housing liquid vessels are ideal for use in chemical systems, pre-filtration for commercial RO and membrane water treatment systems, high purity water, post-filtration, food & beverage, industrial facilities, and more.

We carry a large inventory of our commercial & industrial stainless steel liquid housings at all times. Most models shown are in stock for immediate shipment.

Benefits of the Stainless Steel Filter Housings

• No Lead Time!  In stock for immediate shipment.


• Band V-Clamp Top Closure for Quick and Easy Cartridge Replacement


• Side-In and Side-Out Connections for Easy Installation and Service


• Available with Threaded or Flanged Fittings for Easy Installation


• Housings are Compatible with Industry-Standard  2.5” OD, 30” & 40” Filter Cartridges, for Widely Available Replacements


• Heavy-Duty Stainless Steel Construction for Durability and Reliable Performance


• Available with 304 or 316 Stainless Steel


• AMI Products have earned an industry-wide reputation for their high quality and superior performance


• 100% Quality Control Inspected in our ISO 9001:2015 certified facility in the USA.

Stainless Steel Filter Housing Features

• For Standard 30" or 40" Filter Cartridges - Each Vessel Houses  5 to 22 Filtration Cartridges


• Band V-Clamp Top Closure


• Built-In Drain and Vent Ports


• Materials of Construction:



  • 316L Stainless Steel with Electropolish Finish  or  304 Stainless Steel with Poly Coat Finish


  • Buna-N O-Ring






• Operating Limits:



  • Maximum Operating Pressure: 150 psi (10 bar)


  • Maximum Operating Temperature: 250°F (120°C)






• Flow Rates up to 616 GPM

Applications for The Stainless Steel Filter Housings

• Reverse Osmosis Pretreatment


• Chemical & Petrochemical


• Dairy


• Drinking-Water


• Food and Beverage


• Liquid Desalination


• Electronics


• Fuel Material Extraction


• Oil & Water Separation


• Pharmaceuticals & Biotechnology


• Pulp & Paper


• Wastewater Reuse


• Recycled Water


• Industrial Water Treatment
