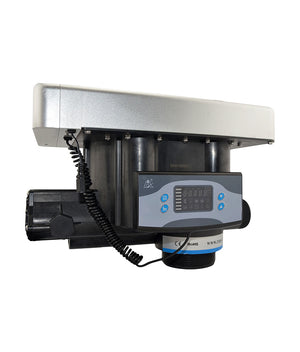

RUNXIN F77B Automatic Filter

RUNXIN F77B Automatic Filter

RUNXIN F77B Automatic Filter

Parameters

• Water Pressure————————————————0.2—0.6MPa
• Water Temperature——————————————-5℃-45℃
• Transformer Output——————————————-DC24V、1.5A
• Water Turbidity————————————————＜20FTU
• Inlet/Outlet——————————————————-2″M
• Drain————————————————————–1.5″M
• Base—————————————————————4″-8UN
• Riser Pipe——————————————————–1.5 ″D-GB
• Max Flow Rate—————————————————18 m3/h
• Suitable Tank Size (in)—————————————–10″～30″

Features

• It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
• LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
• Having long outage indicator
• It could set up rinsing frequence
• Buttons are locked when no operation within 1 minute
• Having interlock function
• With signal output connector
• With remote handling input connector
• With pressure relief connector
• All parameters can be modified according to the need

Applications

• Residential filtration system
• Swimming pool filtration equipment
• Active carbon or sand filter in RO pretreatment filtration system
