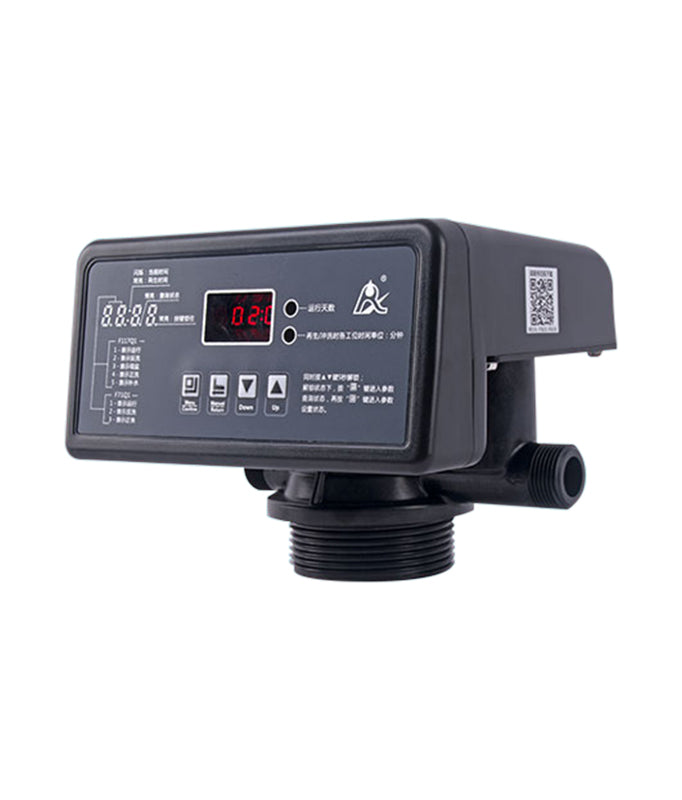

RUNXIN F71Q Automatic Filter Valve

Technical Parameters：

• Water Pressure————————————————0.15—0.6MPa


• Water Temperature——————————————-5℃-50℃


• Transformer Output——————————————-DC12V、1.5A


• Water Turbidity————————————————＜20FTU


• Inlet/Outlet——————————————————-3/4″F


• Drain————————————————————–3/4″F


• Base—————————————————————2.5″-8NPSM


• Riser Pipe——————————————————–1.05 ″OD


• Max Flow Rate—————————————————2 m3/h


• Suitable Tank Size (in)—————————————–6″～10″

Product Characteristics：

• It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.


• No water passes the valve in rinse in single tank type.


• LED dynamic screen display LED. The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.


• Having long outage indicator


• It could set up rinsing frequency


• There are two kinds of time clock types: by hours or by days


• Buttons are locked when no operation within 1 minute


• Having an interlock function


• With signal output connector


• With remote handling input connector


• With pressure relief connector


• All parameters can be modified according to the need

Range of Application：

• Residential filtration system


• Swimming pool filtration equipment


• Active carbon or sand filter in RO pretreatment filtration system
