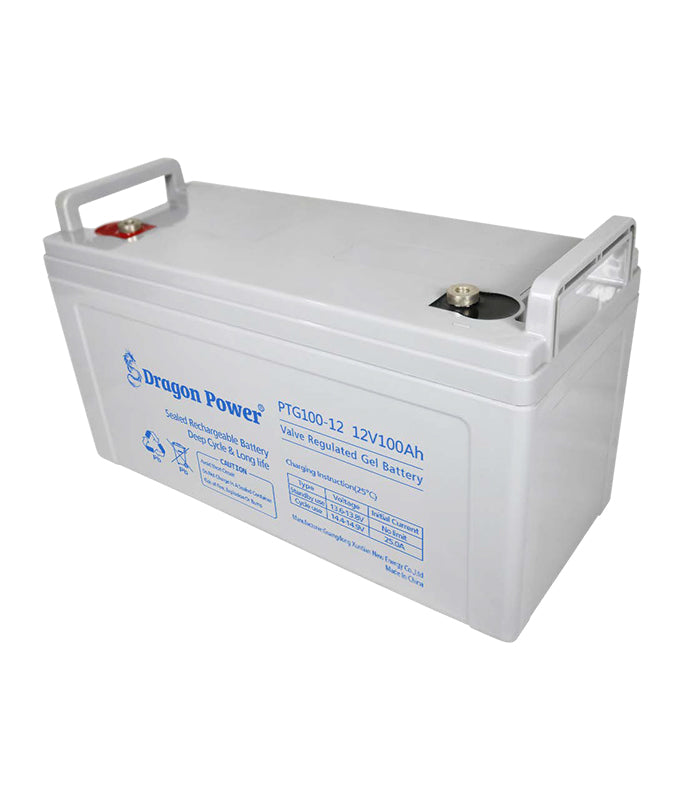

PTG100-12 12V100AH Gel Battery

PTG100-12 12V100AH Gel Battery
R 2,070.00 ZAR
R 2,070.00 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

PTG100-12 12V100AH

Gel Battery

General Feature

  • Micromillimeter SiO2 and H2SO4 technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
  • Not restricted to air transport-complies with IATA/ICAO Special Provision A67.
  • Can be mounted in any orientation.
  • Computer-designed lead, calcium tin alloy grid for high power density.
  • Long service life, float or cyclic applications.
  • Maintenance-free operation.
  • Low self-discharge.

Specification

  • Nominal voltage •••••••••••••••• 12V
  • Number of cell ••••••••••••••••••• 6
  • Length(mm/inch) ••••••••••••••• 407/16.02
  • Width(mm/inch) •••••••••••••••• 174/6.85
  • Height(mm/inch) ••••••••••••••• 209/8.23
  • Total Height(mm/inch) •••••••••••••••• 233/9.17
  • Approx.Weight(kg/lbs) •••••••••••••••• 29/63.93

Material

Component Positive plate Negative plate Container Cover Safety valve Terminal Separator Electrolyte
Raw material Lead dioxide Lead ABS ABS Rubber Copper Fiberglass Colloidal Silicon

CONFIGURATION

Capacity 77˚F(25˚C) 20 hours rate (5.2A 10.8V) 104Ah
10 hours rate (10A 10.8V) 100Ah
5 hours rate (17.4A 10.5V) 87Ah
1 hour rate (63.5A 9.6V) 63.5Ah
Internal Resistance Full charged battery 77° F(25℃):6mΩΩ
Capacity affected by Temperature (10 hour rate) 104° F(40℃) 102%
77° F(25℃) 100%
32° F(10℃) 85%
5° F(-15℃) 65%
Self-Discharge 68° F(20℃) Capacity after 3 month storage 90%
Capacity after 6 month storage 80%
Capacity after 12 month storage 60%
Max discharge current 77° F(25℃):800A(5S)
Charge (Constant Voltage) Float:13.6 to 13.8V/77° F(25℃)
Cycle:14.4 to 14.7V/77° F(25℃)
Max Current:25A
