LFP51.2-100 51.2V100AH

LFP51.2-100 51.2V100AH
R 13,800.00 ZAR
R 13,800.00 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

LFP51.2-100 51.2V100AH

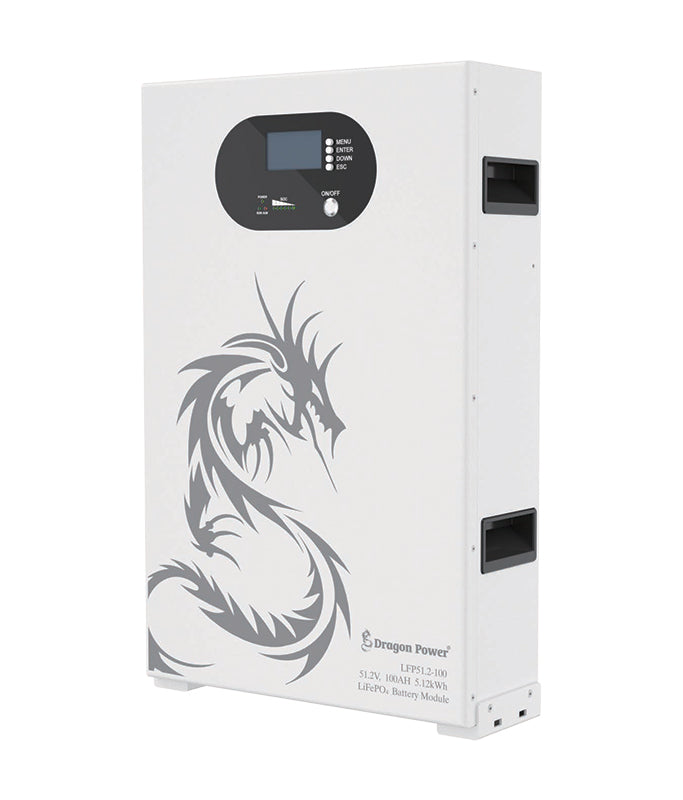

Floor-Mounted LiFePO4 Battery

General Feature

  • Supports parallel expansion up to 16 parallel.
  • Compatible with many mainstream inverter brands in the market.
  • Installation mode can be wall hanging and floor.
  • Built-in BMS system for battery life protection.
  • Excellent safety: Adopt high grade A quality Lithium iron phosphate material.
  • Acceptable customization.

Application

  • Solar/Wind Energy Storage System
  • Communication Equipment
  • Emergency Power System
  • Medical Equipment
  • UPS Backup Power
  • Electric Vehicles/Electric mobility
  • Fire And Security System
  • Lighting

Product Parameter

Available electricity 5.12kWh
Rated capacity 100Ah
Combination mode 16S1P
BMS configuration 16S100A
Rated voltage 51.2V
Operating voltage range 41.6V~58.4V
Rated charge and discharge current 50A
Peak current 100A Continue @130A 500ms
Rated charging and discharging power 2.56kW
Peak power 5.12kW Continue @6.656kW 500ms
Short-circuit current 0.377Ka@100us
Cycle life ≥6000 Cycle， 80%DOD, 25℃
Communication mode CAN, RS485, RS232
Parallel number Recommend 6 in parallel(Max support 16 in parallel)
Remote data Bluetooth / WiFi (Optional)
Weight 49±3%Kg
Dimensions (L*W*H) mm 425*145*675mm
Operating temperature Charging：0℃~+50℃ / Discharge：-20℃~+60℃
Relative humidity 0~95%
Storage temperature ＜3 Months -10℃~25℃ / ＜1 Year 0℃~25℃
Maximum working altitude 2000m
Class of protection IP20
Supports inverter communication brands SMA/Growatt/TBB/Deye/GOODWE/Huawei/Schneider/Victon Energy/SOFAR/INVT
Installation mode Wall hanging/Floor mounting
Power cable outlet mode Upper
Standards and certification MSDS, UN38.3
Read more
Read less
👀
people are viewing this right now

SKU:

Vendor: Reverse Osmosis
Batteries & Solar Inverters
Size chart
  • Shipping Available
  • 100% money back guarantee
  • T&Cs Apply on Warranty
Payment methods
    View Product details
    product-img
    LFP51.2-100 51.2V100AH
    R 13,800.00 ZAR
    R 13,800.00 ZAR
    Tax included.

    LFP51.2-100 51.2V100AH

    Floor-Mounted LiFePO4 Battery

    General Feature

    • Supports parallel expansion up to 16 parallel.
    • Compatible with many mainstream inverter brands in the market.
    • Installation mode can be wall hanging and floor.
    • Built-in BMS system for battery life protection.
    • Excellent safety: Adopt high grade A quality Lithium iron phosphate material.
    • Acceptable customization.

    Application

    • Solar/Wind Energy Storage System
    • Communication Equipment
    • Emergency Power System
    • Medical Equipment
    • UPS Backup Power
    • Electric Vehicles/Electric mobility
    • Fire And Security System
    • Lighting

    Product Parameter

    Available electricity 5.12kWh
    Rated capacity 100Ah
    Combination mode 16S1P
    BMS configuration 16S100A
    Rated voltage 51.2V
    Operating voltage range 41.6V~58.4V
    Rated charge and discharge current 50A
    Peak current 100A Continue @130A 500ms
    Rated charging and discharging power 2.56kW
    Peak power 5.12kW Continue @6.656kW 500ms
    Short-circuit current 0.377Ka@100us
    Cycle life ≥6000 Cycle， 80%DOD, 25℃
    Communication mode CAN, RS485, RS232
    Parallel number Recommend 6 in parallel(Max support 16 in parallel)
    Remote data Bluetooth / WiFi (Optional)
    Weight 49±3%Kg
    Dimensions (L*W*H) mm 425*145*675mm
    Operating temperature Charging：0℃~+50℃ / Discharge：-20℃~+60℃
    Relative humidity 0~95%
    Storage temperature ＜3 Months -10℃~25℃ / ＜1 Year 0℃~25℃
    Maximum working altitude 2000m
    Class of protection IP20
    Supports inverter communication brands SMA/Growatt/TBB/Deye/GOODWE/Huawei/Schneider/Victon Energy/SOFAR/INVT
    Installation mode Wall hanging/Floor mounting
    Power cable outlet mode Upper
    Standards and certification MSDS, UN38.3
