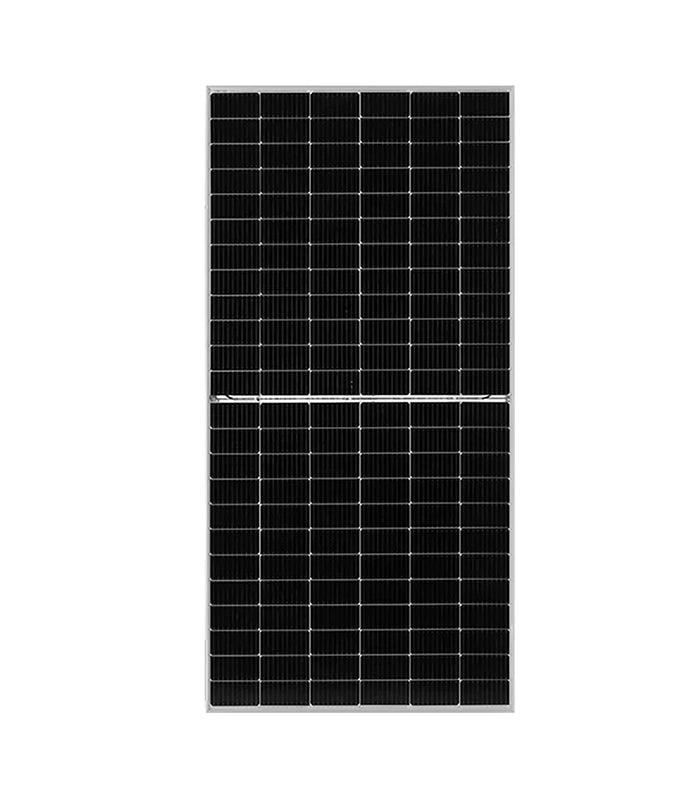

Jinko 535w Solar Panel (EAGLE 72HM G5b)

Jinko 535w Solar Panel (EAGLE 72HM G5b)
R 2,070.00 ZAR
R 2,070.00 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

EAGLE 72HM G5b

525-545 WATT • HALF CELL BIFACIAL

Positive power tolerance of 0~+3%

  • NYSE-listed since 2010, Bloomberg Tier 1 manufacturer
  • Best-selling module globally for last 4 years
  • Top performance in the strictest 3rd party labs
  • Automated manufacturing utilizing artificial intelligence
  • Vertically integrated, tight controls on quality
  • Premium solar panel factories in USA and Malaysia

LINEAR PERFORMANCE WARRANTY

30-Year Performance Warranty

  • ISO9001:2015 Quality Standards
  • ISO14001:2015 Environmental Standards
  • IEC61215, IEC61730 certified products
  • ISO45001:2018 Occupational
  • Health & Safety Standards
  • UL61730 certified products

KEY FEATURES

  • Multi Busbar Half Cell Technology
    • High efficiency half cut solar cells deliver high power in a small footprint.
  • Bifacial Power Gain
    • Bifacial cell architecture allows backside bonusand more lifetime power yield.
  • Light-Weight Design
    • Use of transparent backsheet allows for easy installation and lower BOS cost.
  • Thick and Tough
    • Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass, and thick backsheet for added durability.
  • Shade Tolerant
    • Twin array design allows continued performance even with shading by trees or debris.
  • Protected Against All Environments
    • Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow.

ENGINEERING DRAWINGS

ELECTRICAL PERFORMANCE & TEMPERATURE DEPENDENCE

MECHANICAL CHARACTERISTICS

  • No. of Half Cells: 144 (2x72)
  • Dimensions: 2274×1134×40mm (89.53×44.65×1.57in)
  • Weight: 29.4kg (64.82lbs)
  • Front Glass: 3.2mm, Anti-Reflection Coating | High Transmission, Low Iron, Tempered Glass
  • Frame: Anodized Aluminum Alloy
  • Junction Box: IP68 Rated
  • Output Cables: 12 AWG, 1400mm (55.12in) or Customized Length
  • Fire Type: Type 1
  • Pressure Rating: 5400Pa (Snow) & 2400Pa (Wind)
  • Hailstone Test: 55mm Hailstones at 34m/s

TEMPERATURE CHARACTERISTICS

  • Temperature Coefficients of Pmax: -0.35%/°C
  • Temperature Coefficients of Voc: -0.28%/°C
  • Temperature Coefficients of Isc: 0.048%/°C
  • Nominal Operating Cell Temperature (NOCT): 45±2°C
  • Refer. Bifacial Factor: 70±5%

MAXIMUM RATINGS

  • Operating Temperature (°C): -40°C~+85°C
  • Maximum System Voltage: 1500VDC (UL and IEC)
  • Maximum Series Fuse Rating: 30A

PACKAGING CONFIGURATION

(Two pallets = One stack)

  • 27pcs/pallets, 54pcs/stack, 540pcs/40 HQ Container

BIFACIAL OUTPUT-REARSIDE POWER GAIN

5% Maximum Power (Pmax) 551Wp 557Wp 562Wp 567Wp 572Wp
Module Efficiency (%) 21.38% 21.58% 21.78% 21.99% 22.19%
15% Maximum Power (Pmax) 604Wp 610Wp 615Wp 621Wp 623Wp
Module Efficiency (%) 23.41% 23.64% 23.86% 24.08% 24.30%
25% Maximum Power (Pmax) 656Wp 663Wp 669Wp 675Wp 681Wp
Module Efficiency (%) 25.45% 25.69% 25.93% 26.18% 26.42%
