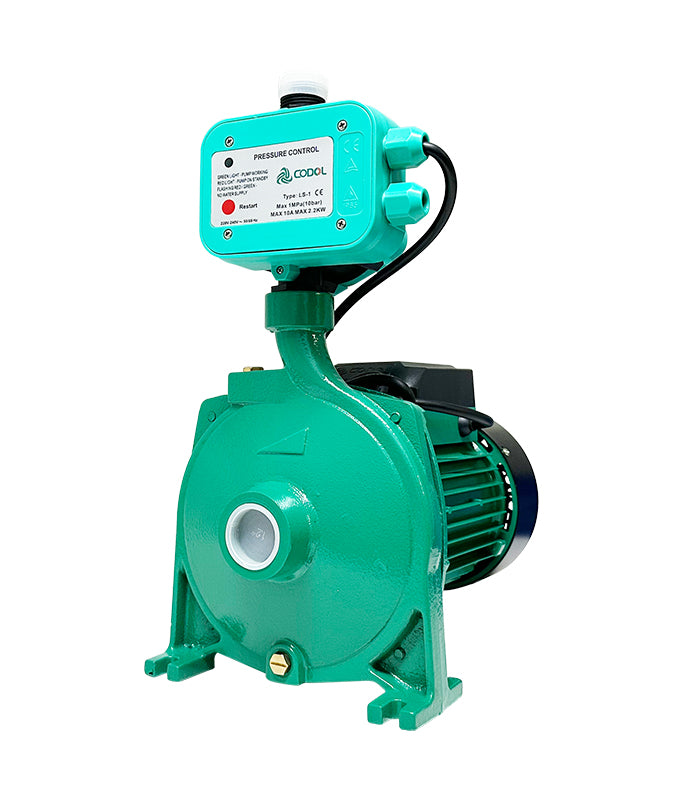

Codol CPM200 + EPC-1 Controller

Codol CPM200 + EPC-1 Controller

Features

• Bigger Flow & high head
• Compact design, easy to install & maintain

Working Conditions

• Clean water without abrasive particles
• Liquid temp. up to 40˚C
• Ambient Temp. up to 40 °C
• Suction Lift up to 7m

Components & Material

• Cast Iron body
• Brass Impeller
• 304 stainless steel welding shaft
• Built-in thermal protector

Applications

• Pump clean water from well or tank
• Boost water in pressurisation system
• Farm irrigation, garden irrigation, breeding industriy water supply

Technical Specs

• Model: CPM200
• Vontage: 220V/50Hz
• Power: 2.2kW/3HP
• Max. Flow: 8.4 m³/h
• Max. head: 42m
• Max. Suction: 7m
• Inlet/Outlet: 1.25″ * 1″
