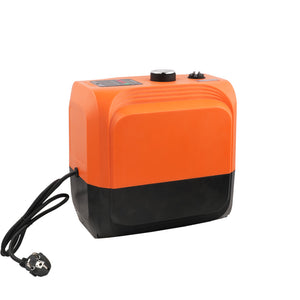

BPG1100 Adaptive Variable Frequency Permanent Magnet Booster Pump

The "BPG1100 Adaptive Variable Frequency Permanent Magnet Booster Pump for Wholehouse" is a specialized water booster pump system designed to improve water pressure and flow throughout a household. Here are its key features:

IP55 Rating: This rating ensures the pump is protected against dust ingress and low-pressure water jets from any direction, making it suitable for both indoor and outdoor use in environments where exposure to dust and water is a concern.

Adaptive Variable Frequency: The pump utilizes a variable frequency drive (VFD) to adjust motor speed and output to match water demand. This adaptive feature ensures efficient operation by delivering the required pressure and flow rate while minimizing energy consumption.

Permanent Magnet Motor: Equipped with a permanent magnet motor, the pump offers high efficiency, compact size, and precise control over motor speed and performance. Permanent magnet motors are known for their energy efficiency and are ideal for applications requiring variable speed control.

Wholehouse Booster Pump: Specifically designed to boost water pressure and flow for the entire household, this pump ensures consistent water supply and adequate pressure at all fixtures, appliances, and outlets throughout the home.

Additional Features and Benefits:

• Energy Efficiency: Variable frequency operation and permanent magnet motor technology contribute to significant energy savings.
• Quiet Operation: Smooth and quiet performance suitable for residential environments.
• Easy Installation and Maintenance: User-friendly design allows for straightforward installation and minimal maintenance requirements.
• Pressure and Flow Control: Built-in sensors or controls monitor and adjust pressure and flow parameters.
• Protection Features: Includes overload protection, dry-run protection, and other safety features to safeguard the pump and plumbing system.

Overall, the BPG Series IP55 Adaptive Variable Frequency Permanent Magnet Booster Pump for Wholehouse is designed to provide efficient and reliable water pressure enhancement for residential applications, ensuring a consistent and comfortable water supply experience throughout the entire household.

Key Features

1. Wide input voltage range

• 100-140V,50/60Hz
• 160-240V,50/60Hz

2. DC 24-60V output voltage

• Human safe voltage, no risk of use

3. Adaptive function

• Automatically identify the pipe pressure
• Automatically regulates the starting pressure

4. Super long life span

• S1 motor duty cycle, 30,000 hours of service life

5.Anti-freezing&pressure resistance

• Small impeller, a small pump body.higher hardness

6. Super quiet 20-30dB

• Adopt permanent magnet motor and water cooling structure, don't need a cooling fan

7. Worth to invest and making brandFourinvention patents, exclusive technology

8. Energy saving 70%

• 400W permanent magnet motor replaces 1100W traditional motor, bringing the same performance

9.Max.suction is 9.5m, wider application range

10. Zero rust water fluid passage components are made of food-grade plastic

11. Dual control system(pressure + flow switch)

• Support step-less pressure regulation for a pump with 0-100m head

12. Multiple protection

• Water shortage protection, frequent start&stop protection,overcurrent&undervoltage protection, etc.

13. Timing function, supply water for the water tower

14. Plug and play

15. High pass rate of standard parts and high production efficiency

• Customized model for each part, no finishing, one cross screwdriver completes assembly and disassembly

Working Condition

Liquid temperature:0-100°C
Ambient temperature:4-60°C
Max.suction:+9.5m
Insulation: Class H
Ingress protection: IP55
Duty cycle: S1
Input voltage: Single phase
100-140V，50/60Hz
160-240V,50/60Hz

Performance Chart

Technical Data
