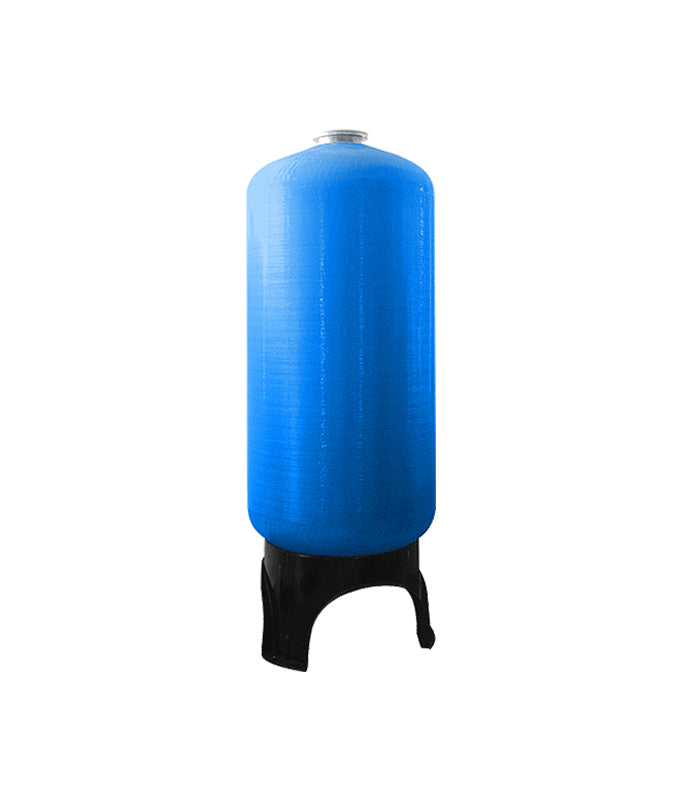

Ametec FRP Vessel 3072

Composite Pressure Vessels offer reinforced fiberglass construction for outstanding performance and durability. Available in capacities up to 1,600 gallons, composite vessels are available with a variety of different configurations.



FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage


• 100% composite fiberglass construction


• Outstanding performance and durability in harsh chemical environments


• Absolutely will not – and cannot – rust


• Capacities up to 1,600 gallons


• Factory-backed five-year warranty


• Commercial softening and filtration

Material of Construction

• Polyethylene inner shell

Operating Parameters

• Maximum operating pressure – 150 psi


• Maximum operating temperature – 120°F (threaded); 150°F (flanged)

•
  Play The Video


01. Specifications:

• Operating Pressure: 150psi (10.5Bar)


• Operating Temp.: 34-122˚F (1-50˚C)


• Max Vacuum: 140mm Hg


• Mini exposed Temp: -30˚C (-22˚F)

02. Test

• 250000 times of cycle test from 0 - 150psi withstanding pressure. (NSF’s requirements is 100000 times)


• Burst test to four times of its operating pressure. (600psi)

03. Color

• Basically we provide the pressure vessels in natural standard blue.
