Ozone is a powerful oxidant and bactericide. Lately, the ozone generator is widely used in air and water disinfection & sterilisation in different fields such as fruit and vegetable fresh-keeping, drinking water purification, room air purifying, etc.

--

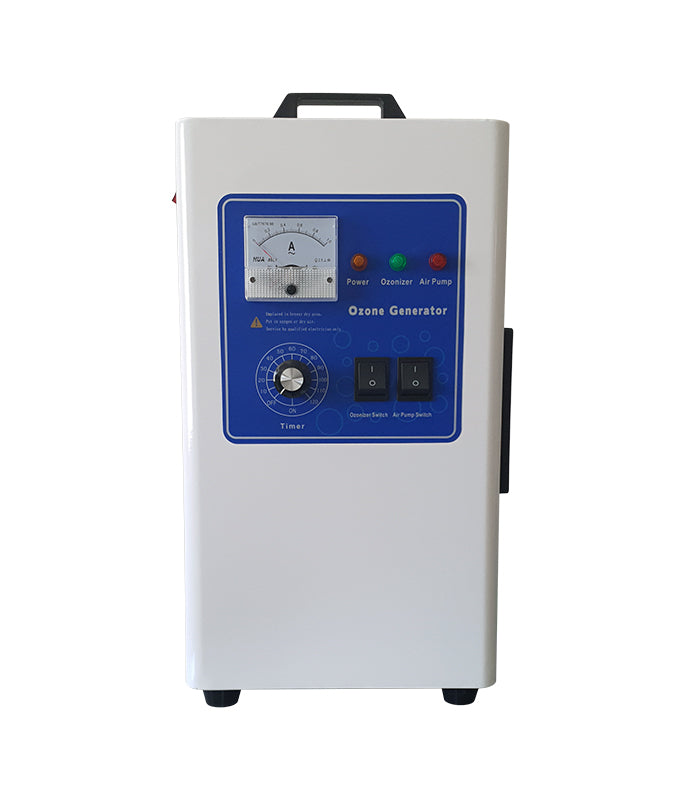

5G/Hr Ozone Generator

Ozone is a powerful oxidant and bactericide. Lately, it is widely used in air and water disinfection & sterilization in different fields such as fruit and vegetable fresh-keeping, drinking water purification, room air purifying, etc.

Technical Specifications

• Power: 80W


• Injection Range: 30-70m³


• Ozone Concentration: 15-25g/m³


• Unit Dimensions: 23cm x 18cm x 46.5cm


• Package Dimensions: 32cm x 26cm x 51cm


• Net Weight: 5.1kg


• Gross Weight: 5.9kg


• Cooling Way: Air Cooling


• Voltage: 220V/50Hz


• Gas Feeding: Air Source


• Air Pump Model: Air Pump 16L


• Outer Flow: 16L


• Chassis Material: Carbon Steel Spray Painted


• Cooling Fans: 20W/12cm x 12cm x 3.8cm

Functions

• Efficiently destroy a variety of bacteria and viruses, but without secondary pollution.


• Effectively remove residual pesticides from vegetables and fruits.


• Eliminate mold, smoke, and remove bad odor.


• Improve the oxygen level for air and water.


• Purifies the air and expedites human metabolism. Removes skin pore dirt, bacteria, and prevent freckles, acne, and pigmentation.

Operating Environment

• Ambient Temperature: -10˚C ~37˚C


• Ambient Humidity: ≤55%


• There should be no flammable or explosive gas and conductive power dust in the room. It is not permittable to install the unit in a place where alkaline air is easy to leak or with a risk of an explosion that could occur.


• The ground for equipment installation must be horizontal, and the equipment should be placed on the ground or steady supports


• There must be a draft fan or air conditioner to keep the air dry and the operating environment in good ventilation.

Safety Notes

• This series of products use a 220V/50Hz AC power source. If the voltage and frequency fluctuation range is heavy, this may cause damage and equipment failure.


• The power cord plugs should keep in contact with the socket firmly. If not, this may cause abnormal electricity usage, and even cause electrocution.


• Users should regularly check the power cord, and avoid standing or putting heavy objects on the power cord.


• Please don’t use the unit in an environment that contains explosive products.


• In operation, the machine uses high voltage. Don’t open the back door or touch the inside of the unit when its plugged in.


• Avoid inside contact with water as this will damage the unit.
