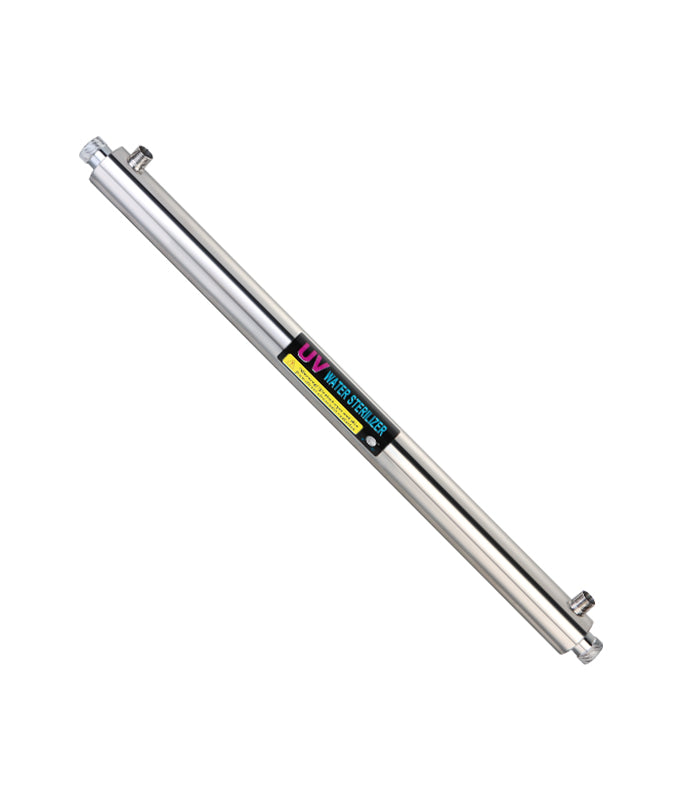

55 Watts UV Sterilizer

55 Watts UV Sterilizer | What is a UV Water Sterilizer?

A UV water sterilizer is a powerful water treatment system designed to make water healthier and extend the lifespan of already treated water. The term "sterile" refers to being free from living microorganisms, such as bacteria and viruses. A UV sterilizer works by using ultraviolet light to purify water, effectively eliminating harmful microorganisms even after the water has undergone initial treatment.

Ultraviolet (UV) light is a form of energy found in the electromagnetic spectrum, positioned between X-rays and visible light. While UV light is invisible to the naked eye, we are exposed to it every time we step outside into the sun, where it is responsible for causing sunburns.

How Does UV Water Sterilization Work?

UV water purification systems utilize specialized lamps that emit UV-C light, a specific wavelength that can disrupt the DNA of microorganisms in the water. As the water passes through the UV system, the microorganisms are exposed to this light, which damages their genetic code and prevents them from reproducing. This process eliminates their ability to replicate and infect other organisms.

UV sterilization is incredibly effective, destroying 99.99% of harmful microorganisms without the need for chemicals. This makes it an environmentally-friendly and chemical-free method for water purification.

Why Choose Our 55 Watts UV Sterilizer?

Our 55 Watts UV Sterilizer is an affordable and efficient solution for purifying water. Here are some reasons why it's the ideal choice for your water treatment needs:

• Chemical-free purification: It destroys 99.99% of harmful microorganisms without adding any chemicals to the water.
• Low operational costs: It purifies hundreds of gallons of water for minimal operating costs.
• Compact design: Easy to install and maintain, it requires minimal space to operate.
• No chlorine taste or corrosion: The treated water remains pure and free from any chlorine taste.
• Ongoing disinfection: Once the water leaves the UV system, it's ready for use with no additional treatment or waiting time required.

Applications of UV Sterilization

Water Bottling Plants

In the water bottling industry, UV sterilizers are crucial for eliminating bacteria and other pathogens that can accumulate in storage tanks, ensuring safe bottled water for consumers.

Cooking Water

Ensure the water used for cooking is bacteria-free and safe to consume by adding a UV sterilizer to your domestic water system. It guarantees that your cooking water is free from harmful microorganisms.

Features of the 55 Watts UV Sterilizer

• Flow Rate: 2720 LPH / 12 GPM
• Inlet/Outlet Size: 3/4"
• Diameter: 62.5mm
• Length: 960mm

Parts of the UV System

1. Ultraviolet Power Supply Unit

   • This unit controls the electrical output of the UV lamp and powers the UV-C light needed for water purification. It can be simple or come with advanced features like alarms, lamp change timers, and trouble indicators.

2. Inlet for Untreated Water

   • The entry point where untreated water enters the system for UV treatment.

3. UV System Housing

   • Contains the UV lamp and quartz sleeve and regulates the water flow through the system.

4. Outlet for Treated Water

   • The point where purified water exits the UV system.

5. UV Bulb

   • The UV lamp produces UV-C light, which is germicidal and effective in disinfecting water. The type of bulb used will depend on the specific disinfection needs of the application.

6. UV Quartz Sleeve

   • The quartz sleeve protects the UV lamp from the water while allowing the UV-C light to pass through. It is important to clean the sleeve regularly, especially when replacing the lamp, as contaminants in the water can cloud the glass and reduce effectiveness.

Conclusion

The 55 Watts UV Sterilizer offers an efficient, chemical-free method for disinfecting water. Ideal for applications like water bottling and domestic use, this system ensures that your water is 99.99% purified and free from harmful microorganisms. Its low operational costs, compact design, and ease of maintenance make it the perfect solution for long-term water disinfection.
