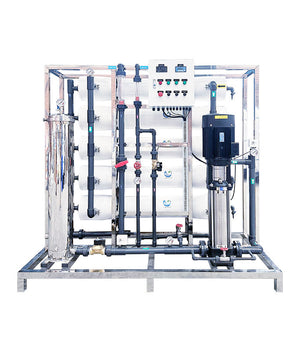

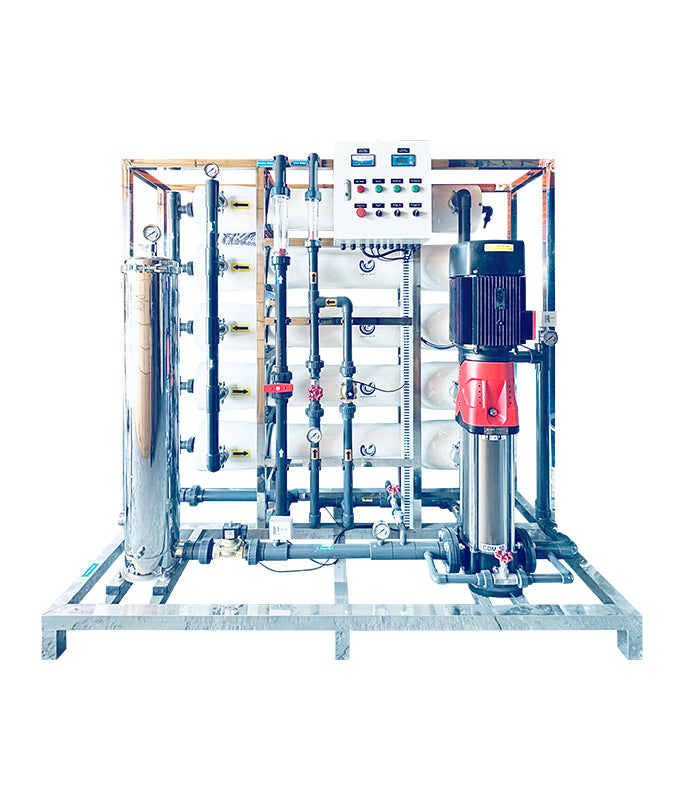

Compared with the common ion exchange and distilling method, the RO membrane water purification system is more efficient, cost-saving, and reliable. The reverse osmosis system is currently the most sophisticated water filtration technology. The reverse osmosis membrane retains inorganic molecules such as dissolved salts and organic substances with a molecular weight greater than 100. On the other hand, water molecules can pass through the reverse osmosis membrane freely, and desalination is 96%-99%
It is widely applied in electronics, power, photo-voltaic, beverage, medicine, chemical, petroleum industries, middle water recycling, and seawater desalination, etc.
| Item | Function |
| precision filter | prevent large particles, bacteria, viruses into the RO membrane, accuracy is 5um |
| High-pressure pump | Provide the high pressure for RO membrane |
| Reverse Osmosis system | the main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% of ions |
| UV sterilizer | kill bacteria |
| Capacity | 5000LPH/40000GPD |
| Voltage | 220V/50Hz,220V/60Hz, Single phase |
| Recovery | 50%-70% |
| Desalination | 96%-99% |
| Membrane Qty | 5pcs |
| Temp of raw water | 1-45℃ |
| Feed Water Pressure | 1-5 bar |
| Raw water TDS | 0-1000ppm |
| Application raw water | Tap water, Brackish water, Seawater |
| RO Membrane | Vontron, Dow |
| Item name | Material |
| Pressure gauge | assembly |
| HP PUMP | SS304 |
| RO Membrane housing | FRP |
| Pure Flowmeter | Plexiglas Panel |
| waste Flowmeter | Plexiglas Panel |
| Conductivity meter | engineering plastics |
| Pressure switch | brass |
| inlet valve | brass |
| flush valve | brass |
| Regulating valve | brass |
| UV sterilizer | SS304 |
| Electronic control system | air switch.electric relay.alternating current contractor.switch.LED |
| control box | SS304 /Mild Steel |
| Frame | SUS304 |
| pipeline | UPVC 3/4'' |
