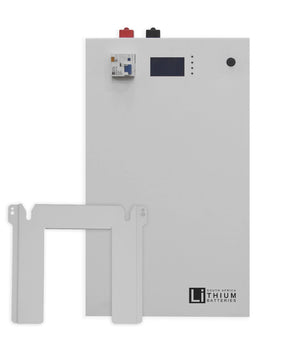

48v 208Ah 5.3kWh LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery

Warranty

10-year warranty / 4500 cycles (9000 cycles on BMS display)

(20 - 30 years service life)

Details

• Bulk + Absorption: 56.2V
• Float: 56.2V
• Low Voltage Cut Off: 44V
• Charge for Parallel Units: (100A*Units in parallel*)
• Discharge for Parallel Units: 200A*Units in parallel*)

Module Basic Parameter

• Module Nominal Voltage (V): 51.2V
• Module Nominal Capacity (Ah): 208Ah
• Module Nominal Power (kWh): 10.6kWh
• Dimensions (mm): 750mm 135mm * 520mm
• Weight (Kg): 86KG
• Discharge Cut-Off Voltage (V): 44V
• Charge Voltage (Bulk Absorption) (V): 56.2V
• Max Discharge Current (A): 200A
• Remmended Charge Current: 100A
• Communication Interface: Can
• Configuration: 2P 16S
• Operating Temperature: 0 ~ 50 °C (Charge), - 20 ~ 50 °C (Discharge) -20 ~ 55 °C (Storage)
• Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cycle Life: ≥80% Capacity State After 4800 Cycles at 0.5C, 25°C, 100% DOD
• IP Level: IP 20
