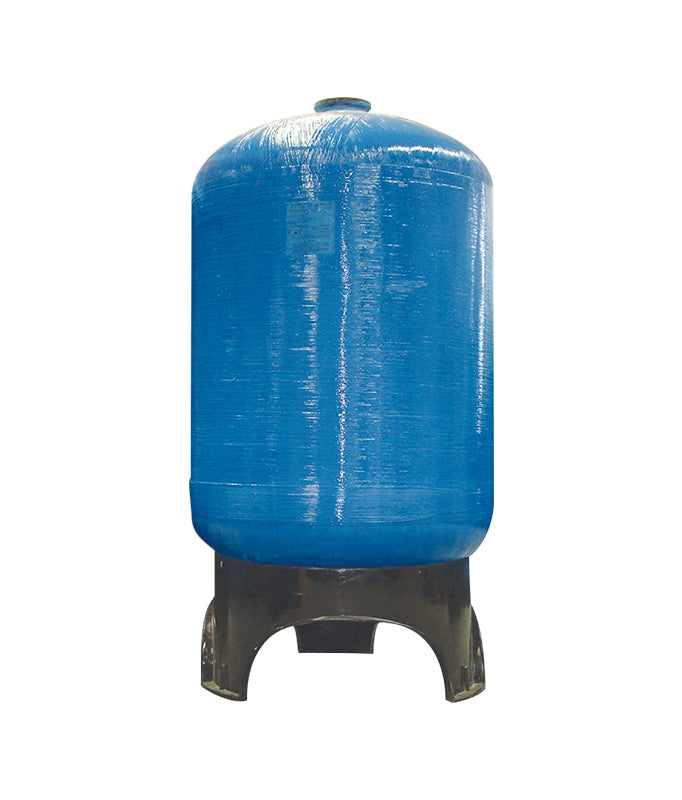

Canature FRP Vessel 3672 4" Opening 10 Bar

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage

• 100% composite fiberglass construction

• Outstanding performance and durability in harsh chemical environments

• Absolutely will not and cannot rust

• Capacities up to 1,600 gallons

• Factory-backed one-year warranty

• Commercial softening and filtration



3672 4″ Opening 10 Bar

Composite Pressure Vessels offer reinforced fiberglass construction for outstanding performance and durability. Available in capacities up to 1,600 gallons, composite vessels are available with a variety of different configurations.



FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage

• 100% composite fiberglass construction

• Outstanding performance and durability in harsh chemical environments

• Absolutely will not – and cannot – rust

• Capacities up to 1,600 gallons

• Factory-backed five-year warranty

• Commercial softening and filtration

Material of Construction

• Polyethylene inner shell

Operating Parameters

• Maximum operating pressure – 150 psi

• Maximum operating temperature – 120°F (threaded); 150°F (flanged)

•
  Play The Video


01. Specifications:

• Operating Pressure: 150psi (10.5Bar)

• Operating Temp.: 34-122˚F (1-50˚C)

• Max Vacuum: 140mm Hg

• Mini exposed Temp: -30˚C (-22˚F)

02. Test

• 250000 times of cycle test from 0 - 150psi withstanding pressure. (NSF’s requirements is 100000 times)

• Burst test to four times of its operating pressure. (600psi)

03. Color

• Basically we provide the pressure vessels in natural standard blue.
