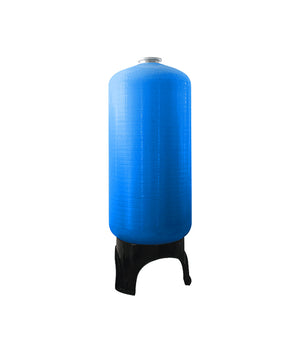

Canature FRP Vessel 2472 4" Opening 10 Bar

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage


• 100% composite fiberglass construction


• Outstanding performance and durability in harsh chemical environments


• Absolutely will not and cannot rust


• Capacities up to 1,600 gallons


• Factory-backed one-year warranty


• Commercial softening and filtration

--

Canature FRP Vessel 2472 4"

Composite Pressure Vessels offer reinforced fiberglass construction for outstanding performance and durability. Available in capacities up to 1,600 gallons, composite vessels are available with a variety of different configurations.

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage


• 100% composite fiberglass construction


• Outstanding performance and durability in harsh chemical environments


• Absolutely will not and cannot rust


• Capacities up to 1,600 gallons


• Factory-backed one-year warranty


• Commercial softening and filtration

Material of Construction

• Polyethylene inner shell

Operating Parameters

• Maximum operating pressure – 150 psi


• Maximum operating temperature – 120°F (threaded); 150°F (flanged)

•
  Play The Video


01. Specifications:

• Operating Pressure: 150psi (10.5Bar)


• Operating Temp.: 34-122˚F (1-50˚C)


• Max Vacuum: 140mm Hg


• Mini exposed Temp: -30˚C (-22˚F)

02. Test

• 250000 times of cycle test from 0 - 150psi withstanding pressure. (NSF’s requirements is 100000 times)


• Burst test to four times of its operating pressure. (600psi)

03. Color

• Basically we provide the pressure vessels in natural standard blue.

Why canature press tanks?

1. More Advanced Production Line: By Automatic Robots.


2. Higher Testing Standards and Requirements.


3. Safer and high quality materials: Food Grade, HDPE Liner.


4. More Choices: over 120 sizes from 0517 to 6386.


5. More Customization: Brand, Color(blue, black, natural, grey, green) and Sizes.


6. More Certificates: NSF and ACS certificated, KTW and W270 are being applied.


7. More Packing methods: single box, large box and pallet packing.


8. Longer Warranty: 1 year for residential tanks and 1 year for commercial and industrial tanks.


9. More combined components reduce costs: such as central tube, resin, cabinet etc.


10. Lower Price and Faster delivery time.
