220 Watts UV Sterilizer

220 Watts UV Sterilizer | What is a UV Water Sterilizer?

A UV water sterilizer is a critical component in water purification systems that ensures water is free from harmful microorganisms. UV sterilizers work by utilizing Ultraviolet (UV) light to kill bacteria, viruses, and other pathogens that may remain in water even after it has been treated.

UV light is a type of energy found in the electromagnetic spectrum, between X-rays and visible light. While we can't see UV rays, we are constantly exposed to them, especially from the sun, where they are responsible for causing sunburns. In water sterilization, UV light disrupts the genetic material (DNA/RNA) of microorganisms, rendering them harmless.

How Does UV Sterilization Work?

A UV sterilizer uses lamps that emit UV light of a specific wavelength, targeting microorganisms in the water. As water passes through the UV system, the light attacks the genetic code of harmful microorganisms, preventing them from reproducing or causing infections. The process is 99.99% effective, ensuring that the water is safe for use without introducing any harmful chemicals.

This UV treatment process is not only simple but highly effective. It provides chemical-free disinfection, making it a safe and environmentally friendly option for purifying water.

Why Choose Our 220 Watts UV Sterilizer?

Our 220 Watts UV Sterilizer is designed to provide an economical and highly efficient solution for water disinfection. It is a well-known post-treatment option in water purification systems, recommended by companies like Puritech for its ability to kill microorganisms after initial water treatment.

Key Advantages of UV Sterilizers:

• Kills 99.99% of harmful microorganisms without adding chemicals.
• No risk of overdosing – UV light is a safe and controlled method of disinfection.
• Low operational cost – purifies hundreds of gallons of water for every penny spent.
• Compact, easy-to-install units that require minimal maintenance.
• Chemical-free water disinfection, with no chlorine taste or corrosion issues.
• Ongoing disinfection without the need for special attention or complex monitoring.

Ideal Applications for UV Sterilizers

UV sterilizers are widely used in various industries and household systems to ensure water safety:

Water Bottling Plants

In the water bottling industry, UV sterilizers are essential for killing bacteria and other pathogens that may build up in storage tanks, ensuring safe bottled water.

Cooking Water

For residential use, adding a UV sterilizer to your water system guarantees that the water used for cooking is bacterial-free, ensuring safe consumption for your family.

Parts of the UV Sterilizer System

1. Ultraviolet Power Supply Unit This unit controls the electrical output of the UV lamp and powers the UV-C light for water purification. Some systems come with advanced features such as alarm indicators, lamp timers, and trouble lights.

2. Inlet for Untreated Water The entry point where untreated water enters the UV sterilization system.

3. UV System Housing This part houses the UV lamp and quartz sleeve and also regulates the flow of water through the system.

4. Outlet for Treated Water The exit point where purified water flows out of the system.

5. UV Bulb The UV lamp emits UV-C light, which is germicidal and effective in killing harmful microorganisms. The lamp type varies based on the disinfection requirements.

6. UV Quartz Sleeve The quartz sleeve protects the UV lamp from direct contact with water. The sleeve transmits UV light into the water. Regular cleaning is important to remove any cloudiness caused by minerals and contaminants.

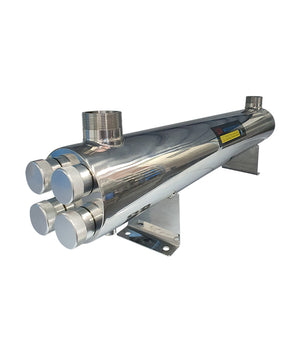

UV Sterilizer Specifications:

• Flow Rate: 10,880 LPH
• Dimensions (mm):
  • Diameter: 133mm
  • Length: 950mm
• Quartz Sleeve (x4): Length 950mm
• Lamp (x4): Length 925mm
• Housing Material: SUS304 Stainless Steel
• Inlet/Outlet: 2″ (50mm)

Why Choose Our 220 Watts UV Sterilizer for Your Water Treatment?

Our 220 Watts UV Sterilizer is the ideal solution for effective, chemical-free water disinfection. Whether you are in the water bottling industry or simply looking to ensure your household water is free from harmful microorganisms, our UV sterilizer offers a cost-effective, compact, and reliable solution for clean water.
