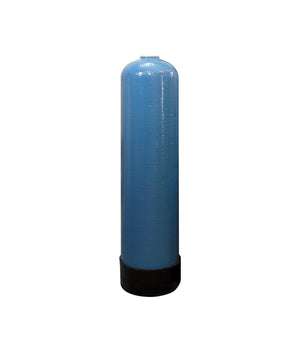

Canature FRP Vessel 1465 2.5" Opening 10 Bar

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage

• 100% composite fiberglass construction

• Outstanding performance and durability in harsh chemical environments

• Absolutely will not and cannot rust

• Capacities up to 1,600 gallons

• Factory-backed one-year warranty

• Commercial softening and filtration

Canature FRP Vessel 1465 2.5"

Composite Pressure Vessels offer reinforced fiberglass construction for outstanding performance and durability. Available in capacities up to 1,600 gallons, composite vessels are available with a variety of different configurations.

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage
• 100% composite fiberglass construction
• Outstanding performance and durability in harsh chemical environments
• Absolutely will not and cannot rust
• Capacities up to 1,600 gallons
• Factory-backed one-year warranty
• Commercial softening and filtration

Material of Construction

• Polyethylene inner shell

Operating Parameters

• Maximum operating pressure – 150 psi
• Maximum operating temperature – 120°F (threaded); 150°F (flanged)

01. Specifications:

• Operating Pressure: 150psi (10.5Bar)
• Operating Temp.: 34-122˚F (1-50˚C)
• Max Vacuum: 140mm Hg
• Mini exposed Temp: -30˚C (-22˚F)

02. Test

• 250000 times of cycle test from 0 - 150psi withstanding pressure. (NSF’s requirements is 100000 times)
• Burst test to four times of its operating pressure. (600psi)

03. Color

• Basically we provide the pressure vessels in natural standard blue.

Why canature press tanks?

1. More Advanced Production Line: By Automatic Robots.

1. Higher Testing Standards and Requirements.

1. Safer and high quality materials: Food Grade, HDPE Liner.

1. More Choices: over 120 sizes from 0517 to 6386.

1. More Customization: Brand, Color(blue, black, natural, grey, green) and Sizes.

1. More Certificates: NSF and ACS certificated, KTW and W270 are being applied.

1. More Packing methods: single box, large box and pallet packing.

1. Longer Warranty: 1 year for residential tanks and 1 year for commercial and industrial tanks.

1. More combined components reduce costs: such as central tube, resin, cabinet etc.

1. Lower Price and Faster delivery time.
