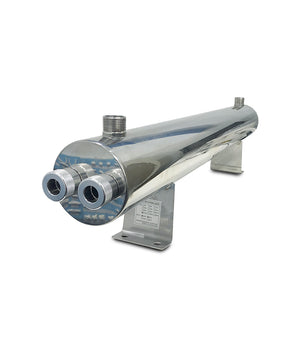

110 Watts UV Sterilizer

110 Watts UV Sterilizer | What is a UV Water Sterilizer?

A UV water sterilizer is a powerful tool used in water purification systems to ensure that water remains free from harmful microorganisms. Even after water has been treated, a UV sterilizer can further enhance water quality by eliminating germs and bacteria that may still be present.

Ultraviolet (UV) light is a type of energy in the electromagnetic spectrum, positioned between X-rays and visible light. While we can’t see UV rays, we’re exposed to them every day, especially from the sun. In fact, UV light is the primary cause of sunburns. In water treatment, UV light is harnessed to disinfect water by disrupting the DNA and RNA of microorganisms, preventing them from reproducing and causing harm.

How Does UV Sterilization Work?

UV sterilization works by using lamps that emit UV light at specific wavelengths. When water flows through the system, microorganisms are exposed to UV light, which disrupts their genetic code, rendering them incapable of reproducing or infecting others. This process kills 99.99% of harmful microorganisms without adding any chemicals to the water, making it a safe, eco-friendly solution.

Why Choose Our 110 Watts UV Sterilizer?

Our 110 Watts UV Sterilizer offers an effective, reliable, and chemical-free way to ensure your water is safe. It’s highly recommended for post-treatment in water purification systems. UV technology has long been recognized for its effectiveness, affordability, and simplicity.

Key Benefits of UV Water Sterilization:

• 99.99% effective at killing harmful microorganisms.
• Chemical-free disinfection, with no risk of overdosing or adding harmful substances.
• No chlorine taste or corrosive effects in the treated water.
• Low operational costs – purifies hundreds of gallons of water for every penny spent.
• Compact and easy to install – saves space and requires minimal maintenance.
• Ongoing disinfection with no need for extra attention or monitoring.

Ideal Applications for UV Sterilizers

UV sterilization is beneficial in various water treatment applications:

Water Bottling Plants

In the water bottling industry, UV sterilizers are essential for ensuring all bacteria in the storage tanks are eliminated, providing clean, safe water for bottling.

Cooking Water

For households, adding a UV sterilizer to your water system ensures that the water used for cooking is bacterial-free, safe, and clean, providing peace of mind when preparing food.

Parts of the UV Sterilization System

1. Ultraviolet Power Supply Unit The main control unit of the UV system, regulating electrical output to power the UV-C lamp. Some units come with advanced features such as alarms, lamp timers, and trouble indicators.

2. Inlet for Untreated Water The point where untreated water enters the system for disinfection.

3. UV System Housing Contains the UV lamp and quartz sleeve, and controls water flow within the system.

4. Outlet for Treated Water The exit point for purified water.

5. UV Bulb The UV lamp emits UV-C light, which is the germicidal portion of ultraviolet light. Different lamps may be used based on the disinfection requirements of the system.

6. UV Quartz Sleeve Made of quartz glass, the sleeve protects the UV lamp from direct contact with water. The sleeve transmits UV light into the water. Regular cleaning is recommended to prevent mineral buildup and ensure efficient operation.

UV Sterilizer Specifications:

• Flow Rate: 5440 LPH
• Dimensions (mm):
  • Diameter: 114mm
  • Length: 950mm
• Quartz Sleeve (x2) Length: 940mm
• Lamp (x2) Length: 925mm
• Housing Material: SUS304 (Stainless Steel)
• Inlet/Outlet: 1″ (25mm)

Choose Our 110 Watts UV Sterilizer for Safe, Chemical-Free Water

If you're looking for an effective water sterilization solution, the 110 Watts UV Sterilizer provides top-quality disinfection, ensuring that your water is free from harmful microorganisms. It's perfect for residential, commercial, and industrial applications, providing safe, clean water without the use of chemicals.
