Manual Water Softener 2500-3200 LPH 1465

Manual Water Softener 2500-3200 LPH 1465

What is a Manual Water Softener?

A manual water softener is a tried and tested solution for removing lime scale from hard water. The ion exchange process is the key mechanism behind water softening, where calcium and magnesium ions (responsible for water hardness) are exchanged with sodium or potassium ions. This exchange occurs when hard water passes over resin beads loaded with sodium ions, making the water softer and preventing scale buildup in pipes and appliances. While the softened water has a higher sodium content, it does not pose any adverse effects and offers improved quality for daily use.

Features of the Manual Water Softener 2500-3200 LPH 1465

This Manual Water Softener system offers efficient lime scale removal with a flow rate of 2500-3200 LPH (liters per hour), making it suitable for both residential and light commercial use.

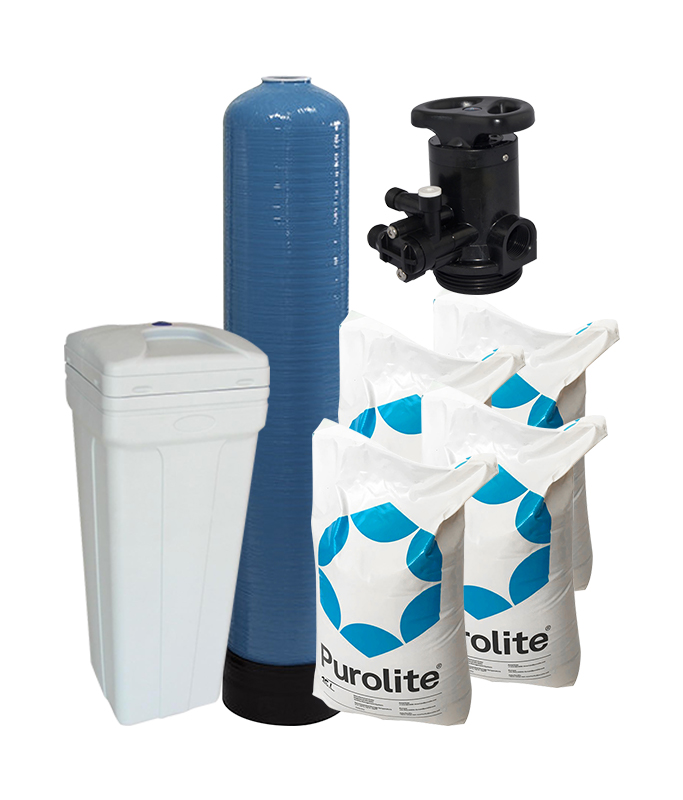

Included System Components:

• Metered On-Demand System for precise water softening control
• 100L Brine Tank with Valve for storing salt used in regeneration
• Manual Softener Valve for manual operation and control
• 14″ x 65″ FRP Vessel (Blue) for effective filtration
• 25Kg Salt Tablets for brine tank usage
• 4x 25L Bags of Cation Resin for efficient ion-exchange
• 1465 Riser Tube with Top and Bottom Strainers for consistent filtration

Cation Resin

Cation exchange resins are used in water softening, water purification, and other filtration processes. These resins replace hardness ions (calcium and magnesium) with sodium ions, effectively softening water. They are also used in biodiesel filtration and are a more flexible alternative to natural or artificial zeolites in various water treatment applications.

14" x 65" FRP Vessel

The 14" x 65" FRP vessel is a pressure tank designed to meet world-class standards at competitive prices. Features include:

• NSF ACS, W270, and KTW Certifications for quality assurance
• Manufactured with food-grade HDPE liners for safety
• Produced using advanced robotic automation for precision
• Available in over 120 sizes, offering a range of customization options, including color (blue, black, natural, gray, green)

This vessel is designed to deliver consistent, long-lasting performance in water softening systems.

Vessel Specifications

• Top Opening Size: 2.5"
• Flow Rate: 2500-3200 LPH
• Vessel Volume: 150L

F64B Runxin Manual Softener Valve

The F64B Runxin Manual Softener Valve integrates multiple ports into one valve body, providing functions for:

• Service Position
• Backwash Position
• Brine and Slow Rinse
• Brine Refill
• Fast Rinse Position

This valve ensures efficient water flow control and allows for manual adjustments to maintain optimal water softening performance.

1465 Riser Tube, Top, and Bottom Strainers

The 1465 Riser Tube with top and bottom strainers is made from ABS engineering plastic, offering high-pressure strength and durability. The design prevents dead water zones and mud accumulation, ensuring consistent filtration and effective ion-exchange. This component is widely used in water treatment filters, softeners, and ion-exchange systems.

100L Brine Tank with Brine Valve

The 100L Brine Tank stores the salt needed for the regeneration process of the ion-exchange resins.

Specifications

Sodium Chloride Tablets

The tablet salt is intended for the regeneration of ion exchange resins used as a filter media in Ecosoft iron and hardness reduction filters FK and softening filters FU.

Key advantages:

• A convenient form of salt for the regeneration of Ecosoft Ecosil, it comes in the form of tablets compressed under a load of 900 tons
• Packaging does not allow moisture and provides long-term storage
• Salt is supplied in the form of tablets conveniently packaged in 25 kg bags.
• Does not cause the formation of an insoluble deposit in the solution tank
• complies with European quality standards
