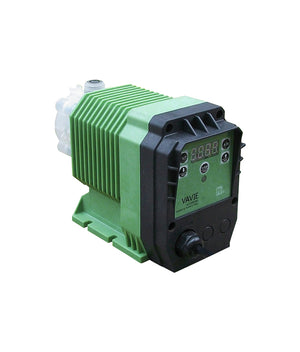

Puritech Dosing Pump

Puritech Dosing Pump
R 4,140.00 ZAR
R 4,140.00 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

Puritech Dosing Pump


ALLEDOSIEREN®

The dosing pump is controlled by a microprocessor, a fixed stroke length, variable stroke frequency, the diaphragm is driven by electromagnets, can be used to transport a variety of chemical dosing.

The electromagnetic force to drive the diaphragm motion in the pump head, the pressure variations caused by the suction valve automatically open and close realization of chemical.

The Dosing Pump in 0.48~15.20 L/h range, the maximum output pressure of 8.2~1.8 bar can adjust the flow according to the regulation of frequency.


Parameters

    • Repeated accuracy: -3%~+3%
    • Ambient Temperature: 5~42˚C (indoor or outdoor in shade)
    • Chemicals Temperature: 5~45˚C (Polypropylene head)
    • Chemicals viscosity: ≤300mPa
    • Particle Diameter ≤0.15mm
    • Voltage: AC 220V 50/60Hz -10%~+15% | AC 110V 50/60Hz  -10%~+15%


Features

    • LCD display
    • Adjust the flow by key
    • Cycle timer
    • Frequency or percentage model
    • Optional automatic control by an external signal


Capacity Data

Capacity Flow L/h Pressure Bar Stroke frequency (N/Min) Suction Height (m) POWER (W) Weight (Kg) Tubing (mm) Voltage VAC
00508 0.48 8.2 90 1.0 12 2.9 4×6 220V 40 & 60Hz
01008 1.03 8.2 90 1.0 12
02008 2.16 8.2 120 1.5 12
03008 3.12 7.6 120 1.5 12
04006 3.60 6.8 120 1.5 12
05006 5.04 6.2 160 1.5 16
06005 6.00 4.3 160 1.5 16
08004 8.16 3.8 160 1.5 16
09003 9.00 3.5 160 2.0 24
10004 10.20 3.2 160 2.0 24
12003 12.80 2.8 180 2.0 30
15002 15.20 1.8 180 2.0 30
