• 1812 75 GPD Vontron Reverse Osmosis Membrane
1 1

1812 75 GPD Vontron RO Membrane

1812 75 GPD Vontron RO Membrane
R 197.34 ZAR
R 197.34 ZAR
- Liquid error (snippets/price line 121): divided by 0% Sold out
Tax included.

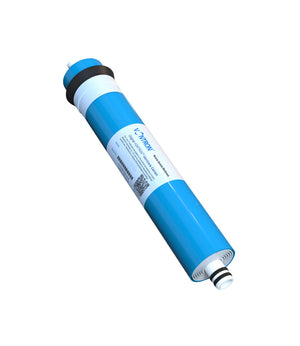

1812 75 GPD Vontron Reverse Osmosis Membrane

Independently developed by VONTRON, the RO element ULP1812-75 is designed for the treatment of low-salinity water resources such as tap water, well water, etc. Working under extra-low pressure, it is applicable to water purifying devices in residence, hospital, and laboratory.


About Vontron Membranes

Ā


Dimensions: millimeter (inch)



Properties and Testing Conditions

Model Average Permeate (GPD) Stable Rejection (%) Min. Rejection (%)
ULP1812-75 75 97.5 96


Notes: Permeate of a single element may vary within [-20%] ~ [+20%]


Testing Conditions:

Testing Pressure: 60 psi (0.41MPa)
The temperature of Testing Solution: 25Ā°C
The concentration of Testing Solution (NaCl): 250 ppm
the pH of Testing Solution: 6.5~8.5
Recovery of Single Element: 15%


Properties and Testing Conditions

Model ULP-1812-50 Ā ULP-1812-75 ULP- 1812-100
Perfor-mance Stable Desalination % 97 97 97
Min. Desalination % 96 96 96
Mean Permeable Flow GPD (L/d) 50Ā (204) 75Ā (281) 100 (380)
Active Film Area ft2(m2) 3.5Ā (0.32) 4.2 (0.38) 5.0 (0.46)
Test Conditions Pressure 65psiĀ (0.45Mpa)
Water Temp. 25ā„ƒ
Concentration(NaCl) 500ppm
Water PH 6.5Ā to 7.5
Recovery Rate % 15
Operating Conditions Max. Operating Pressure 200psiĀ (2.0Mpa)
Max. Feed Water Temp. 45ā„ƒ
Max. Feed Water Silt Density Index (SDI) 5
Feed Water Chlorine Tolerance < 0.1 mg/l
Feed Water PH Range, Continuous Operation 3 to 10
Feed Water PH Range, Short-Term Cleaning 2 to 11
Max. Pressure Drop of Single Membrane 10psiĀ (0.07Mpa)
Read more
